PredefinedColorsQuantizerArgb1555 Method

KGy SOFT Drawing Libraries Help
Gets a PredefinedColorsQuantizer instance that quantizes colors to 16-bit ones where alpha, red, green and blue components are encoded in 1, 5, 5 and 5 bits, respectively.

Namespace:  KGySoft.Drawing.Imaging
Assembly:  KGySoft.Drawing (in KGySoft.Drawing.dll) Version: 5.1.0
Syntax

public static PredefinedColorsQuantizer Argb1555(
	Color backColor = null,
	byte alphaThreshold = 128
)

Parameters

backColor (Optional)
Type: System.DrawingColor
Colors with alpha (transparency), whose Color.A property is equal to or greater than alphaThreshold will be blended with this color before quantization. The Color.A property of the background color is ignored. This parameter is optional.
Default value: Empty, which has the same RGB values as Black.
alphaThreshold (Optional)
Type: SystemByte
Specifies a threshold value for the Color.A property, under which a quantized color is considered transparent. If 0, then the quantized colors will never be transparent. This parameter is optional.
Default value: 128.

Return Value

Type: PredefinedColorsQuantizer
A PredefinedColorsQuantizer instance that quantizes colors to 16-bit ones where each color component is encoded in 5 bits.
Remarks

The returned PredefinedColorsQuantizer instance can return up to 32,768 colors, and a transparent color.

This quantizer fits well for Bitmaps with Format16bppArgb1555 pixel format.

Note Note
For more information about the possible usable PixelFormats on different platforms see the Remarks section of the ConvertPixelFormat extension method.
Examples

The following example demonstrates how to use the quantizer returned by this method:
C#
public static Bitmap ToArgb1555(Bitmap source, Color backColor = default,
    byte alphaThreshold = 128, IDitherer ditherer = null)
{
    IQuantizer quantizer = PredefinedColorsQuantizer.Argb1555(backColor, alphaThreshold);

    // a.) this solution returns a new bitmap and does not change the original one:
    return source.ConvertPixelFormat(PixelFormat.Format16bppArgb1555, quantizer, ditherer);

    // b.) when converting to Format16bppArgb1555 format without dithering, this produces the same result:
    if (ditherer == null)
        return source.ConvertPixelFormat(PixelFormat.Format16bppArgb1555, backColor, alphaThreshold);

    // c.) alternatively, you can perform the quantization directly on the source bitmap:
    if (ditherer == null)
        source.Quantize(quantizer);
    else
        source.Dither(quantizer, ditherer);
    return source;
}

The example above may produce the following results:

Original imageQuantized image

Color hues with alpha gradient
Color hues with alpha gradient

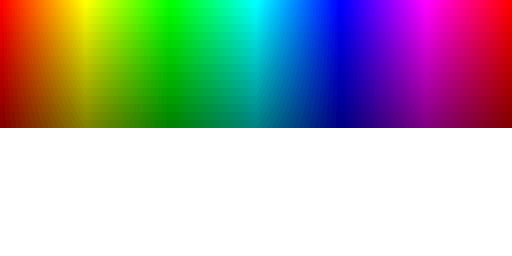

Color hues with ARGB1555 pixel format, black background and default alpha threshold
Default optional parameter values (black background, alpha threshold = 128). The bottom half of the image is transparent.

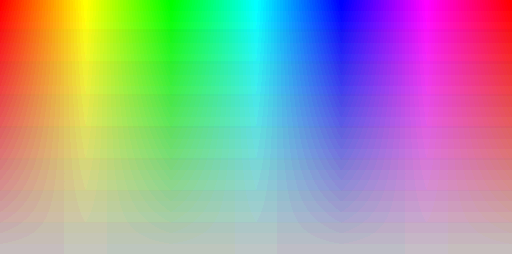

Color hues with ARGB1555 pixel format, silver background and alpha threshold = 1
Silver background, alpha threshold = 1. Only the bottom line is transparent.

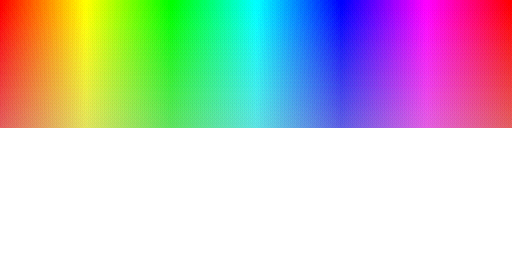

Color hues with ARGB1555 pixel format, silver background, default alpha threshold and Bayer 8x8 ordered dithering
Silver background, default alpha threshold, Bayer 8x8 dithering. The bottom half of the image is transparent.

Shield icon with transparent background
Shield icon with transparency

Shield icon with ARGB1555 pixel format, black background and default alpha threshold
Default optional parameter values (black background, alpha threshold = 128)

Shield icon with ARGB1555 pixel format, silver background and alpha threshold = 1
Silver background, alpha threshold = 1

Shield icon with ARGB1555 pixel format, silver background, default alpha threshold and Floyd-Steinberg dithering
Silver background, default alpha threshold, Floyd-Steinberg dithering
