ErrorDiffusionDithererSierraLite Property

KGy SOFT Drawing Libraries Help
Gets an ErrorDiffusionDitherer instance using a small two-line filter proposed by Frankie Sierra. Uses a 3x2 matrix so it has the same performance as the Floyd-Steinberg algorithm and also produces a quite similar result.
See the Examples section for some examples.

Namespace:  KGySoft.Drawing.Imaging
Assembly:  KGySoft.Drawing (in KGySoft.Drawing.dll) Version: 5.1.0
Syntax

public static ErrorDiffusionDitherer SierraLite { get; }

Property Value

Type: ErrorDiffusionDitherer
Examples

The following example demonstrates how to use the ditherer returned by this property:
C#
public static Bitmap ToDitheredSierraLite(Bitmap source, IQuantizer quantizer)
{
    IDitherer ditherer = ErrorDiffusionDitherer.SierraLite;

    // a.) this solution returns a new bitmap and does not change the original one:
    return source.ConvertPixelFormat(quantizer.PixelFormatHint, quantizer, ditherer);

    // b.) alternatively, you can perform the dithering directly on the source bitmap:
    source.Dither(quantizer, ditherer);
    return source;
}

The example above may produce the following results:

Original imageQuantized and dithered image

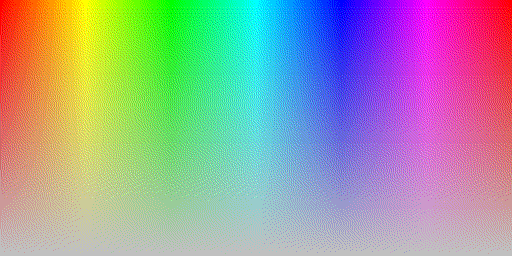

Color hues with alpha gradient
Color hues with alpha gradient

Grayscale color shades with different bit depths
Grayscale color shades

Grayscale color shades with black and white palette using Sierra Lite dithering
Quantizing with black and white palette

Tip Tip
See the Remarks section of the ErrorDiffusionDitherer class for more details and examples.
