PredefinedColorsQuantizerSystemDefault8BppPalette Method

KGy SOFT Drawing Libraries Help
Gets a PredefinedColorsQuantizer instance that quantizes colors using the system default 8-bit palette. On Windows this palette contains the 16 standard basic sRGB colors, the "web-safe" palette of 216 colors as well as 24 transparent entries.
See the Remarks section for details and some examples.

Namespace:  KGySoft.Drawing.Imaging
Assembly:  KGySoft.Drawing (in KGySoft.Drawing.dll) Version: 5.2.1
Syntax

public static PredefinedColorsQuantizer SystemDefault8BppPalette(
	Color backColor = null,
	byte alphaThreshold = 128
)

Parameters

backColor (Optional)
Type: System.DrawingColor
Colors with alpha (transparency), which are considered opaque will be blended with this color before quantization. The Color.A property of the background color is ignored. This parameter is optional.
Default value: Empty, which has the same RGB values as Black.
alphaThreshold (Optional)
Type: SystemByte
If the system default 8-bit palette contains a transparent color on the current operating system, then specifies a threshold value for the Color.A property, under which a quantized color is considered transparent. If 0, then the quantized colors will never be transparent. This parameter is optional.
Default value: 128.

Return Value

Type: PredefinedColorsQuantizer
A PredefinedColorsQuantizer instance that quantizes colors using the system default 8-bit palette.
Remarks

The returned PredefinedColorsQuantizer instance can return up to 256 colors. On Windows this amount is somewhat smaller because of redundant entries in the palette.

This quantizer fits well for Bitmaps with Format8bppIndexed pixel format.

On Windows the palette of this quantizer contains transparent entries.

Note Note
For more information about the possible usable PixelFormats on different platforms see the Remarks section of the ConvertPixelFormat extension method.
Examples

The following example demonstrates how to use the quantizer returned by this method:
C#
public static Bitmap ToDefault8Bpp(Bitmap source, Color backColor = default,
    byte alphaThreshold = 128, IDitherer ditherer = null)
{
    IQuantizer quantizer = PredefinedColorsQuantizer.SystemDefault8BppPalette(backColor, alphaThreshold);

    // a.) this solution returns a new bitmap and does not change the original one:
    return source.ConvertPixelFormat(PixelFormat.Format8bppIndexed, quantizer, ditherer);

    // b.) when converting to Format8bppIndexed format without dithering, this produces the same result:
    if (ditherer == null)
        return source.ConvertPixelFormat(PixelFormat.Format8bppIndexed, backColor, alphaThreshold);

    // c.) alternatively, you can perform the quantization directly on the source bitmap:
    if (ditherer == null)
        source.Quantize(quantizer);
    else
        source.Dither(quantizer, ditherer);
    return source;
}

The example above may produce the following results:

Original imageQuantized image

Color hues with alpha gradient
Color hues with alpha gradient

Color hues with system default 8 BPP palette, black background and default alpha threshold
Default optional parameter values (black background, alpha threshold = 128). The bottom half of the image is transparent.

Color hues with system default 8 BPP palette, silver background and alpha threshold = 1
Silver background, alpha threshold = 1. Only the bottom line is transparent.

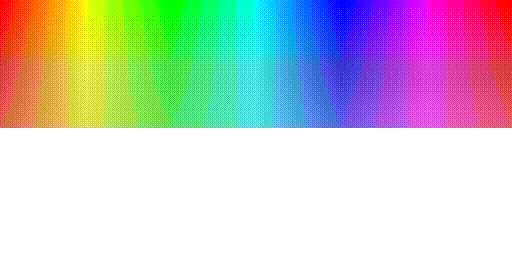

Color hues with system default 8 BPP palette, silver background, default alpha threshold and Bayer 8x8 ordered dithering
Silver background, default alpha threshold, Bayer 8x8 dithering. The bottom half of the image is transparent.

Grayscale color shades with different bit depths
Grayscale color shades

Grayscale color shades with system default 8 BPP palette
Default optional parameter values

Grayscale color shades with system default 8 BPP palette using Bayer 8x8 ordered dithering
Bayer 8x8 dithering

Shield icon with transparent background
Shield icon with transparency

Shield icon with system default 8 BPP palette
Default optional parameter values (black background, alpha threshold = 128)

Shield icon with system default 8 BPP palette using Bayer 8x8 ordered dithering
Default background and alpha threshold, Bayer 8x8 dithering

Shield icon with system default 8 BPP palette using silver background, alpha threshold = 1 and Floyd-Steinberg dithering
Silver background, alpha threshold = 1, Floyd-Steinberg dithering

Test image "Lena"
Original test image "Lena"

Test image "Lena" with system default 8 BPP palette
Default optional parameter values

Test image "Lena" with system default 8 BPP palette using Bayer 8x8 ordered dithering
Bayer 8x8 dithering

Test image "Lena" with system default 8 BPP palette using Floyd-Steinberg dithering
Floyd-Steinberg dithering
