SKBitmapExtensionsConvertPixelFormat(SKBitmap, IQuantizer, IDitherer, SKColorType, SKAlphaType, WorkingColorSpace) Method
Converts the pixel format of this bitmap using the specified colorType, alphaType and targetColorSpace.
Namespace: KGySoft.Drawing.SkiaSharpAssembly: KGySoft.Drawing.SkiaSharp (in KGySoft.Drawing.SkiaSharp.dll) Version: 8.1.0
public static SKBitmap ConvertPixelFormat(
this SKBitmap bitmap,
IQuantizer? quantizer,
IDitherer? ditherer = null,
SKColorType colorType = SKColorType.Unknown,
SKAlphaType alphaType = SKAlphaType.Unknown,
WorkingColorSpace targetColorSpace = WorkingColorSpace.Default
)
<ExtensionAttribute>
Public Shared Function ConvertPixelFormat (
bitmap As SKBitmap,
quantizer As IQuantizer,
Optional ditherer As IDitherer = Nothing,
Optional colorType As SKColorType = SKColorType.Unknown,
Optional alphaType As SKAlphaType = SKAlphaType.Unknown,
Optional targetColorSpace As WorkingColorSpace = WorkingColorSpace.Default
) As SKBitmap
public:
[ExtensionAttribute]
static SKBitmap^ ConvertPixelFormat(
SKBitmap^ bitmap,
IQuantizer^ quantizer,
IDitherer^ ditherer = nullptr,
SKColorType colorType = SKColorType::Unknown,
SKAlphaType alphaType = SKAlphaType::Unknown,
WorkingColorSpace targetColorSpace = WorkingColorSpace::Default
)
[<ExtensionAttribute>]
static member ConvertPixelFormat :
bitmap : SKBitmap *
quantizer : IQuantizer *
?ditherer : IDitherer *
?colorType : SKColorType *
?alphaType : SKAlphaType *
?targetColorSpace : WorkingColorSpace
(* Defaults:
let _ditherer = defaultArg ditherer null
let _colorType = defaultArg colorType SKColorType.Unknown
let _alphaType = defaultArg alphaType SKAlphaType.Unknown
let _targetColorSpace = defaultArg targetColorSpace WorkingColorSpace.Default
*)
-> SKBitmap
- bitmap SKBitmap
- The original bitmap to convert.
- quantizer IQuantizer
- An optional IQuantizer instance to determine the colors of the result.
Can be to pick a quantizer automatically that matches the other parameters.
If no further parameters are specified, then the original pixel format is preserved while colors are optionally quantized.
- ditherer IDitherer (Optional)
- The ditherer to be used. Might be ignored if quantizer is not specified
and colorType represents a higher bits-per-pixel per color channel format. This parameter is optional.
Default value: . - colorType SKColorType (Optional)
- Determines the ColorType property of the result SKBitmap.
Can be Unknown to use the original color type of the source bitmap. This parameter is optional.
Default value: Unknown. - alphaType SKAlphaType (Optional)
- Determines the AlphaType property of the result SKBitmap.
It might be ignored if the colorType cannot have the specified alpha type.
Can be Unknown to use the original alpha type of the source bitmap. This parameter is optional.
Default value: Unknown. - targetColorSpace WorkingColorSpace (Optional)
- Determines both the ColorSpace property of the result SKBitmap,
and also the working color space if quantizer is .
Can be Default to preserve the original color space. This parameter is optional.
Default value: Default.
SKBitmapA new
SKBitmap instance with the desired parameters.In Visual Basic and C#, you can call this method as an instance method on any object of type
SKBitmap. When you use instance method syntax to call this method, omit the first parameter. For more information, see
Extension Methods (Visual Basic) or
Extension Methods (C# Programming Guide).
- This method adjusts the degree of parallelization automatically, blocks the caller, and does not support cancellation or reporting progress. Use
the ConvertPixelFormatAsync(SKBitmap, SKColorType, SKAlphaType, WorkingColorSpace, SKColor, Byte, TaskConfig) method for asynchronous call
and to adjust parallelization, set up cancellation and for reporting progress.
- The targetColorSpace parameter is purposely not an SKColorSpace value because only sRGB and linear color spaces are supported directly.
If its value is Linear, then both the actual color space of the result and the working color space of the conversion operation will be in
the linear color space (unless quantizer is specified, which determines the working color space).
To create a result with sRGB color space but perform the conversion in the linear color space you can use
a quantizer and configure it to work in the linear color space.
If the result SKBitmap can represent fewer colors than the source bitmap and quantizer is ,
then a default quantization will occur during the conversion. To use a quantizer with a specific palette you can use the PredefinedColorsQuantizer class.
If only the quantizer parameter is specified, then the original pixel format will be preserved but the actual colors
will be quantized. You can also specify the ditherer parameter to preserve more details while reducing the colors.
Using a quantizer that can represent more colors than the result SKBitmap may end up in a poor quality result.
The method may produce the following results:
Original image | Quantized image |
---|
Color hues with alpha gradient
| Converting without a quantizer and ditherer, colorType = Argb4444, alphaType = Unpremul.

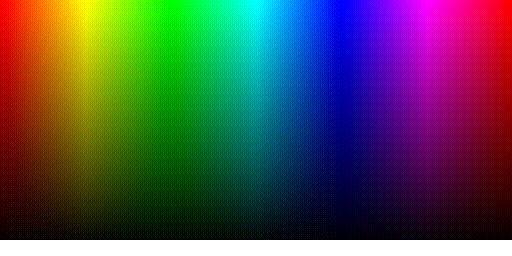

colorType = Argb4444, using Bayer 8x8 dithering. No quantizer is specified so a default black back color was applied.
As this dithering does not support partial transparency, the alpha pixels were blended with black and the bottom 16 lines are fully transparent.

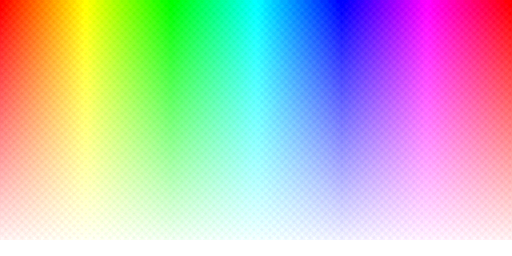

Using Argb1555 quantizer with white background, alpha threshold = 16 along with Dotted Halftone dithering.
All of the other parameters have their default value so the result color type and alpha type are the same as the original, it's just the specified quantizer that reduces the number of colors
and turns the bottom 16 lines completely transparent.
|
