ErrorDiffusionDithererBurkes Property

Gets an ErrorDiffusionDitherer instance using the filter proposed by D. Burkes in 1988. Uses a 5x2 matrix, which is actually the same as the first two lines of the matrix used by the Stucki filter.

Definition

Namespace: KGySoft.Drawing.Imaging
Assembly: KGySoft.Drawing.Core (in KGySoft.Drawing.Core.dll) Version: 9.1.1

C#

public static ErrorDiffusionDitherer Burkes { get; }

VB

Public Shared ReadOnly Property Burkes As ErrorDiffusionDitherer
	Get

C++

public:
static property ErrorDiffusionDitherer^ Burkes {
	ErrorDiffusionDitherer^ get ();
}

F#

static member Burkes : ErrorDiffusionDitherer with get

Property Value

ErrorDiffusionDitherer

Examples

The following example demonstrates how to use the ditherer returned by this property:

C#

public static IReadWriteBitmapData ToDitheredBurkes(IReadWriteBitmapData source, IQuantizer quantizer)
{
    IDitherer ditherer = ErrorDiffusionDitherer.Burkes;

    // a.) this solution returns a new bitmap data and does not change the original one:
    return source.Clone(quantizer.PixelFormatHint, quantizer, ditherer);

    // b.) alternatively, you can perform the dithering directly on the source bitmap data:
    source.Dither(quantizer, ditherer);
    return source;
}

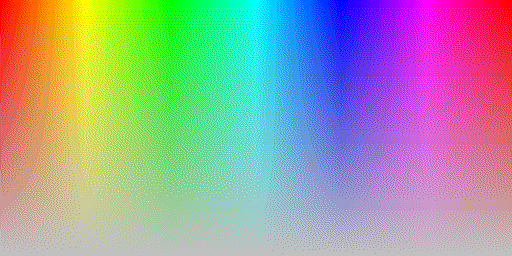

The example above may produce the following results:

Original image	Quantized and dithered image
Color hues with alpha gradient	Quantizing with system default 8 BPP palette
Grayscale color shades	Quantizing with black and white palette

Tip

See the Remarks section of the ErrorDiffusionDitherer class for more details and examples.
