ErrorDiffusionDithererSierra2 Property

Gets an ErrorDiffusionDitherer instance using the two-line filter proposed by Frankie Sierra in 1990. Uses a 5x2 matrix so this somewhat faster than the three-line version and still provides a similar quality.

Definition

Namespace: KGySoft.Drawing.Imaging
Assembly: KGySoft.Drawing.Core (in KGySoft.Drawing.Core.dll) Version: 9.1.1

C#

public static ErrorDiffusionDitherer Sierra2 { get; }

VB

Public Shared ReadOnly Property Sierra2 As ErrorDiffusionDitherer
	Get

C++

public:
static property ErrorDiffusionDitherer^ Sierra2 {
	ErrorDiffusionDitherer^ get ();
}

F#

static member Sierra2 : ErrorDiffusionDitherer with get

Property Value

ErrorDiffusionDitherer

Examples

The following example demonstrates how to use the ditherer returned by this property:

C#

public static IReadWriteBitmapData ToDitheredSierra2(IReadWriteBitmapData source, IQuantizer quantizer)
{
    IDitherer ditherer = ErrorDiffusionDitherer.Sierra2;

    // a.) this solution returns a new bitmap data and does not change the original one:
    return source.Clone(quantizer.PixelFormatHint, quantizer, ditherer);

    // b.) alternatively, you can perform the dithering directly on the source bitmap data:
    source.Dither(quantizer, ditherer);
    return source;
}

The example above may produce the following results:

Original image	Quantized and dithered image

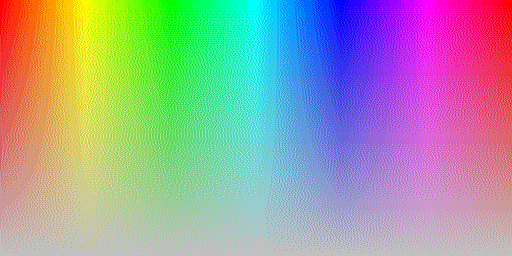

Color hues with alpha gradient	Quantizing with system default 8 BPP palette
Grayscale color shades	Quantizing with black and white palette

Tip

See the Remarks section of the ErrorDiffusionDitherer class for more details and examples.
